Axis Communications

Flexible multisensor fixed camera with four 1080p sensors. The lenses can be adjusted to provide a 108° to 54° horizontal field of view for either a wide, panoramic view, or detailed, zoomed-in views. The lenses can be rotated to support vertically oriented scenes in Axis’ Corridor Format. Supports individually configurable video streams from each camera head, as well as quad view streaming, enabling 4x 1080p resolution videos at 12.5/15 fps or 4x 720p resolution videos at full frame rate. Axis’ Zipstream technology is supported to lower bandwidth and storage requirements. PoE Class 2.

Outdoor 4-port managed PoE switch for surveillance applications. 4 PoE ports with up to 60W PoE per port and one SFP port for uplink. Robust metal enclosure with wide temperature range, IP67 and surge protection for demanding installations. Managed switch for remote configuration and management.

10 meter explosion protected cable, ATEX/IECEx/EAC-approved, for the installation of explosion protected fixed and PTZ network cameras. Multi-connector cable for power (24VAC), network and I/O port.

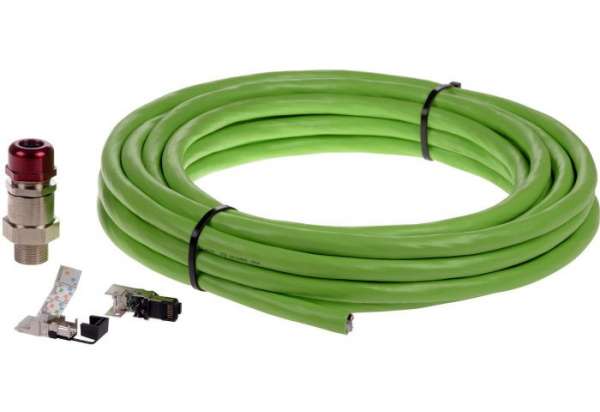

25m unarmored network and power cable for explosion-protected cameras in the ExCam range, certified for use in hazardous areas according to ATEX, IECEx and EAC. Diameter 12.3mm, 8x AWG22 shielded, 3x 1.5mm2, -60°C to +80°C. Included accessories: 5ml Loctite 243 thread locker, 1x CAT6 RJ45 industrial plug (5.5mm – 10.0mm), 1x cable gland with compound Ex d IIC / Ex e II / Ex tD A21 IP66/67/68, M20x1.5.

10m armored network and power cable for explosion-protected cameras in the ExCam range, certified for use in hazardous areas according to ATEX, IECEx and EAC. Diameter 17.0mm, 8x AWG22 shielded, 3x 1.5mm2, -60°C to +80°C, Ex d IIC / Ex e II / Ex tD A21 IP66, IP67, IP68, M20x1.5. Included accessories: 5ml Loctite 243 thread locker, 1x CAT6 RJ45 industrial plug (5.5mm – 10.0mm), 1x cable gland Ex d with compound Ex db eb IIC / Ex tb IIIC / Ex e II / Ex tD IP66/67/68, 1x cable gland Ex e II 2 G Ex e IIC Gb / II 1 D Ex ta IIIC Da IP66 M20x1.5.

1/2» image sensor, HDTV, Day/night fixed camera providing Forensic WDR and Lightfinder for demanding light conditions. Varifocal 3.9-10 mm i-CS lens with remote zoom and focus for installation. Support for P-Iris and DC-iris lenses, multiple, individually configurable H.264 and Motion JPEG streams; full HDTV 1080p/2MP resolution up to 60 fps with Forensic WDR and up to 120 fps without. Zipstream for reduced bandwidth and storage. Fence Guard, Motion Guard, Video motion detection, shock detection and active tampering alarm. Barrel distortion correction, Defog and Electronic image stabilization. Scene profiles.Two-way audio with built-in microphone and audio detection. I/O for alarm/event handling. Memory card slot for optional local video storage. Serial port for RS485/RS422 communication. Power over Ethernet or 8-28 V DC input. Includes stand for wall and ceiling mount. Midspan or power supply not included

AXIS Q1647 Barebone in single pack. No lens. No power supply.

Robust outdoor, 2 MP/HDTV, day/night fixed bullet camera with 32x optical zoom. Multiple, individually configurable H.264 and Motion JPEG streams; max HDTV 1080p /2MP resolution at 50/60 fps. Forensic WDR and Lightfinder for demanding light conditions and Axis Zipstream technology for reduced bandwidth and storage needs. Varifocal 4.3–137 mm, F1.4 with remote zoom and autofocus. Includes analytics AXIS Guard Suite, shock detection and active tampering alarm. Corridor format, Barrel distortion correction, Defog, Electronic image stabilization and Scene profiles Audio mic/line in, I/O for alarm/event handling and memory card slot for optional local video storage. OptimizedIR, a power-efficient IR LED technology. Integrated bracket for easy mounting on wall and ceiling. NEMA 4X, IP66/67 and impact resistant in -40°C to +60°C (-40 °F to 140 °F). Powered by PoE (IEEE 802-3af), 20-28 V DC or 20-24 V AC. Includes a removable sunshield. Power supply or midspan not included.

IR LED illuminator for Axis network cameras. Included interchangeable diverging lenses providing 10°-140° beam angles. Beam distance ranges 105m to 500m (345ft to 1640ft). Made of IK09 impact-resistant aluminium and polycarbonate. IP66 and NEMA 4X ratings. Operating temperature -50°C to 50°C (-58 °F to 122 °F). 12/24 V DC or AC input.
